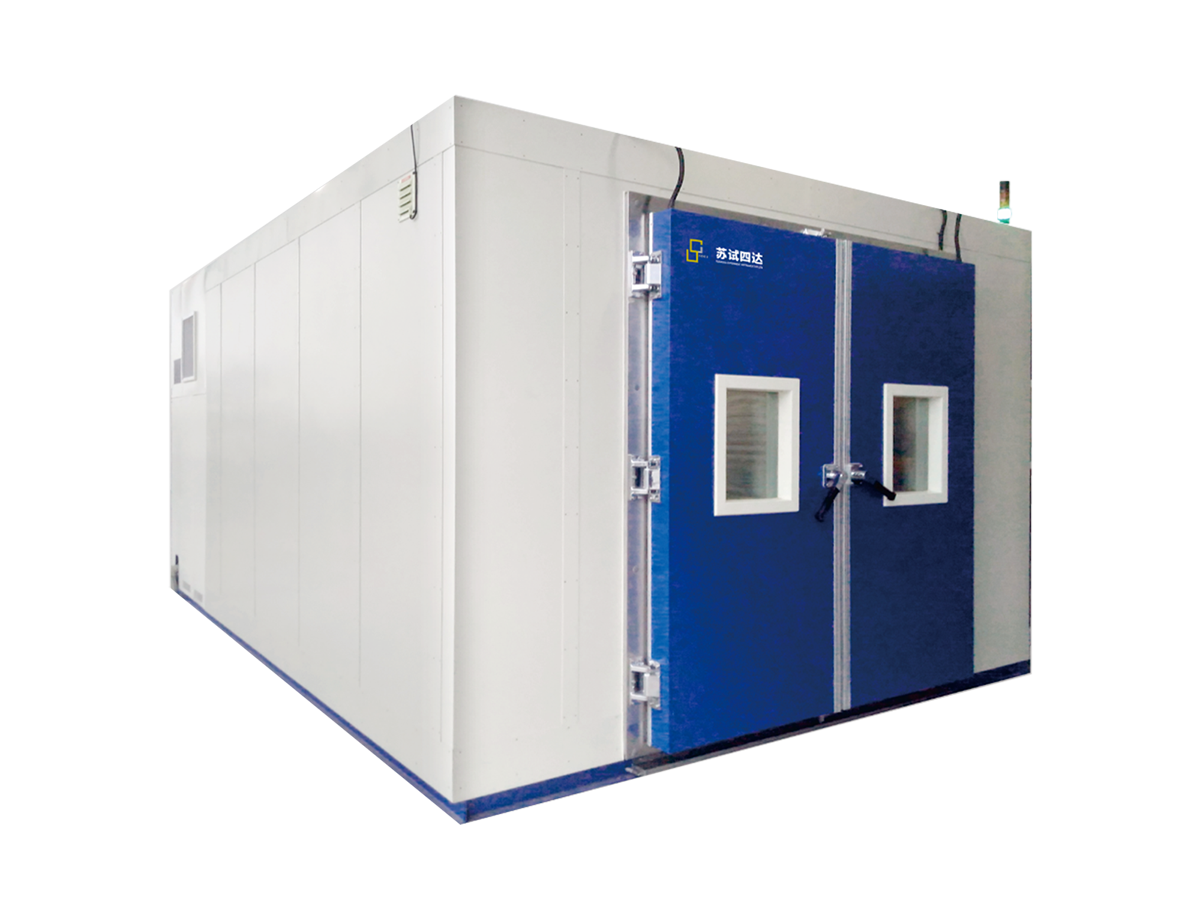

Walk-in Chamber

Email: shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

Walk-in Chamber

Walk-in Chamber - SDW Series.pdf

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

Walk-in test chamber can provide high temperature, low temperature, humidity and other environmental simulation conditions, used in high and low temperature storage test, high and low temperature cycle test, constant humidity heat test, and alternating humidity heat test with different product dimensions.

Parameter Table

Model	S/SH	710A	710B	710C	710D	710E	710F	715B	715C	715D	715E	715F	720B	720V	720D	720E	720F
Volume	m³	10						15					20
Inner Depth	mm	2500						3000					4000
Inner Width	mm	2000						2500					2500
Inner Height	mm	2000						2000					2000
Outer Depth	mm	2650						3150					4150
Outer Width	mm	2300						2800					2800
Outer Height	mm	2400						2400					2400
Unit Dimension	mm	2300 x (800+550) x 2400		2300 x (1000+550) x 2400		2300 x (1200+550) x 2400		2300 x (1000+550) x 2400		2300 x (1200+550) x 2400			2300 x (1000+550) x 2400		2300 x (1200+550) x 2400
Temperature Performance Parameters
Temperature Change Range	℃	-70~150
Temperature Change Rate Range	℃	-55~85
Temperature Change Average Rate	℃	1	1	2	2	5	5	1	2	2	3	5	1	1	2	3	5
Temperature Change Linear Rate	℃	0.5	0.5	1	1	3	3	0.5	1	1	1.5	3	0.5	0.5	1	1.5	3
Load (Aluminum ingots)	kg	40	200	120	200	40	200	80	40	120	120	80	40	200	80	80	50
Temperature Fluctuations	℃	≤1
Temperature Uniformity	℃	≤2
Temperature Deviation	℃	±2
Temperature and Humidity Climate Parameters
Temperature Range	℃	20-85
Humidity Range	%RH	20-98
Temperature Fluctuations	℃	≤1
Temperature Uniformity	℃	≤1
Temperature Deviation	℃	±2
Humidity Deviation	%RH	+2/-3%RH(Humidity > 75%RH), ±5%RH(Humidity ≤ 75%RH)
Humidification power	kW	10						15					20
Power Supply		AC380V 50Hz TN-S
Power	kW	46	51	55.5	78	99	114	55	66	61.5	84	114	36	66	61.5	84	114
Noise	dB (A)	75
Cooling Water Flow	m³/h	6.5	10	13	17	24	31	10	13	17	24	31	10	13	17	24	31
Chamber Structure		All-in-one/split (Deepth not include the unit dimension)
