Product Introduction

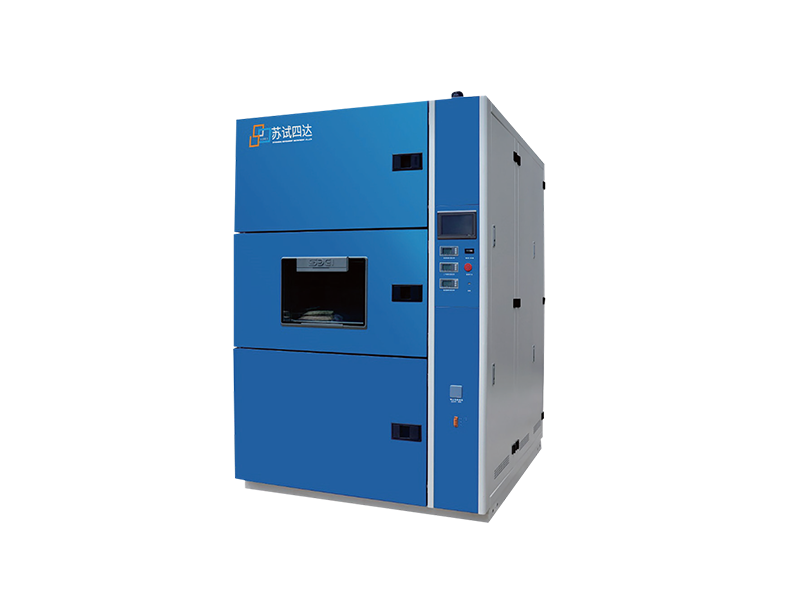

TSD series temperature shock test chamber can be used for environmental simulation, reliability test and stress screening test of electrical components and other products. The test chamber can provide a fixed test space, and the thermal shock test can be carried out within the allowable upper and lower temperature limits of the test piece.



TSD series temperature shock test chamber adopts the test piece to be fixed and achieve the temperature shock by damper switching, which avoids the influence of some special components or small parts during the moving process.

Parameter Table
Model 401FL 402SL 403SW 404SW 405SW 410SW 501FL 502SL 503SW 504SW 505SW 510SW
Volume L 80 150 252 336 504 1000 80 150 252 336 504 1000
Inner Depth mm 400 500 600 700 800 1000 400 500 600 700 800 1000
Inner Width mm 500 600 700 800 900 1000 500 600 700 800 900 1000
Inner Height mm 400 500 600 650 700 1000 400 500 600 650 700 1000
Outer Depth mm 1770 1720 2200 2400 2500 3400 2020 2020 2200 2400 2500 3400
Outer Width mm 1410 1460 1850 1850 2050 2150 1500 1500 1850 1850 2050 2150
Outer Height mm 2140 2240 1770 1820 1870 2270 2270 2270 1770 1820 1870 2270
Chamber Structure Vertical Horizontal Vertical Horizontal
Temperature Performance Parameters
Warm-up Range (High Temperature Chamber) ℃ 60~200
Pre-cooling Range (Low Temperature Chamber) ℃ -70~0
Impact Temperature Range ℃ -40~150 -55~150
Conversion Time S 15
Revocery Time min 5
Heating Time (High Temperature Chamber) min RT→200℃≤60min
Cooling Time (Low Temperature Chamber) min 25℃→-50℃≤60min 25℃→-65℃≤60min
Load (Aluminum ingots) kg 5 10 15 20 25 50 5 10 15 20 25 50
Temperature Fluctuations ℃ ≤1
Temperature Uniformity ℃ ≤2
Temperature Deviation ℃ ±2
Power Suppply AC380V 50Hz TN-S
Power kW 21 30 42 58 70 118 23 42 50 68 86 142
Noise dB(A) 70 70 73 74 75 76 73 73 74 75 76 77
Cooling Method Air-cooled Water-cooled
Total Weight kg 1200 1700 2000 2200 2400 2500 1300 1800 2150 2300 2450 2600
