High Temperature & Blast Drying Chamber DGT(F) Series

Home > Products > Climatic Chambers > High Temperature & Blast Drying Chamber DGT(F) Series

High Temperature & Blast Drying Chamber DGT(F) Series

Email: shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

High Temperature & Blast Drying Chamber DGT(F) Series

High Temperature & Blast Drying Chamber - DGT(F) CS WG Series.pdf

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

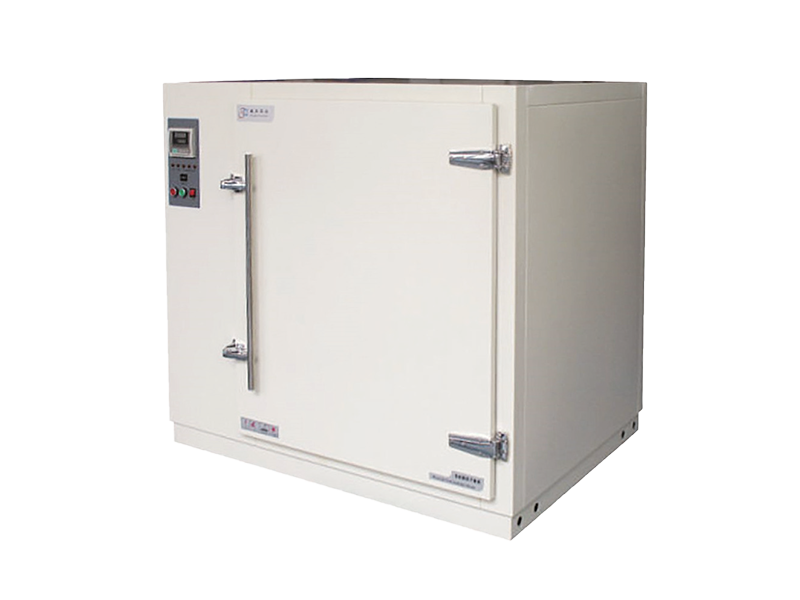

DGT(F) series: used for the drying of articles.

Parameter Table

Model		DGT				DGF		CS
		2006B	202B		302B	3006B	402B	1EB	2EB	3EB
Volume	L	640	2460		2460	640	225	72	140	240
Inner Depth	mm	800	1100		1100	800	500	400	500	600
Inner Width	mm	800	1500		1500	800	600	450	550	650
Inner Height	mm	1000	1600		1600	1000	750	400	500	600
Outer Depth	mm	1070	1440		1440	1070	880	580	680	780
Outer Width	mm	1300	2270		2270	1300	1230	610	710	810
Outer Height	mm	1280	1920		1920	1280	1080	900	1020	1180
Temperature Performance Parameters
Max. Temperature	℃	200		300		300	400	300
Min. Temperature	℃	RT+20				RT+20		RT+20
Heating Time	min	RT→200℃≤60min		RT→300℃≤90min		RT→300℃≤90min	RT→400℃≤100min	RT→300℃≤90min
Temperature Fluctuations	℃	≤±0.5				≤±0.5		≤±0.5
Temperature Uniformity	℃	≤±2.5%				≤±2.5%		≤±2.5%
Controller		YL3000 series temperature digital display controller, with PID self-tuning function
Heater Type		Nichrome heating tube				Nichrome heating wire
Power Supply	AC	380V/50Hz TN-S				380V/50Hz	220V	220V
Total Power	kW	7.5	16		16	5.5	7	1.8	2.7	3.6
Noise	dB(A)	68	68		68	68	68	68	68	68
Total Weight	kg	200	500		500	200	600	50	70	90
