Product Introduction

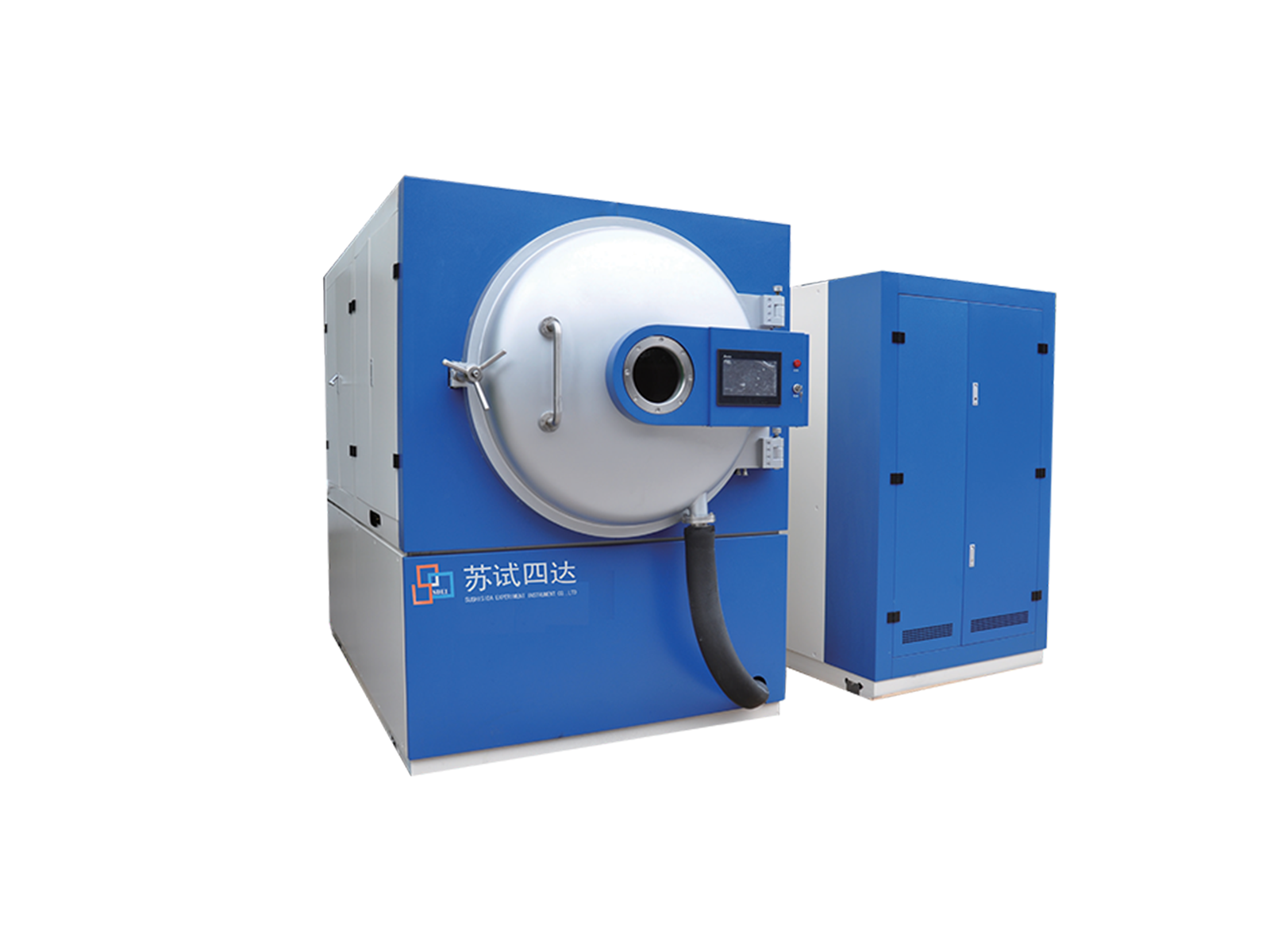

The thermal vacuum test chamber can be used for space environment testing or reliability testing of materials, components, and small complete machines in the aerospace field.



The KMT series test chamber can provide a vacuum degree of more than 10-3Pa, the internal annular heat sink can achieve the simulation of the cold and black environment, the temperature control bottom plate can shorten the temperature stabilization time of the test piece under high vacuum, and the temperature measurement system can accomplish the data monitoring and recording during the test process.

Parameter Table
Model 810 812 1010 1012 1214 1216
Tank mm 1000×1000 1000×1200 1200×1000 1200×1200 1400×1400 1400×1600
Heat Sink mm 800×1000 800×1200 1000×1000 1000×1200 1200×1400 1200×1600
Test Piece Mounting Base Plate (L x W) mm 650×600 800×600 650×600 800×600 1000×800 1200×800
Base Plate Mounting Position mm Below centerline 200±2 Below centerline 200±2 Below centerline 250±2 Below centerline 250±2 Below centerline 300±2 Below centerline 300±2
Solar spectral absorption coefficient on the inner surface of the heat sink αs≥0.93
Emissivity of the inner surface of the heat sink εH≥0.87
Temperature Performance Parameters
Heat Sink Temperature Range ℃ -70~150
Base Plate Temperature Range ℃ -70~150
Heat Sink Average Temperature Change Rate ℃/min ≥2
Base Plate Average Temperature Change Rate ℃/min ≥2
Heat Sink Temperature Uniformity ℃ ±2 ±3
Base Plate Temperature Uniformity ℃ ±2 ±3
Pressure Performance Parameters
Ultimate Pressure Pa ≤5×10-5
Working Pressure Pa ≤1.3×10-3
Main Pump Pumping Time h 5
Simulate Loads kg 10 15 20
Simulate Load hape cm 40×35×40 60×35×40 60×35×40 75×35×40 70×45×50 85×45×50
Main Pump Low temperature pump
Oil Pump High and low temperature magnetic pump
Backing Pump Rotary vane pump + roots pump
Refrigeration Method Mechanical cascade refrigeration (liquid nitrogen-assisted refrigeration)
Power Supply AC380V 50Hz TN-S
Heating Power kW 18 30
Power kW 50 55 60 60 75 88
Noise dB(A) ≤75
Cooling Method Water-cooled
Total Weight kg 1950 2250 2400 2800 3200 3800
