Product Introduction

According to the type of guidance rail, S series slip table can be divided SV, ST and STL shaped slip table.

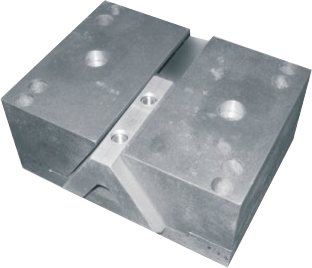

·SV slip tables design with V-groove bearings, have the low-pressure hydraulics housed within the mono-base slip table. This design offers lower cost with higher reliability and lower maintenance.

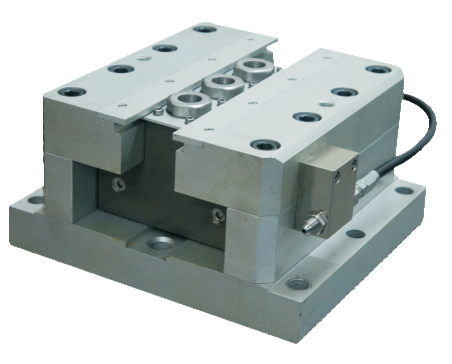

·ST slip tables design with T-slot bearings, have higher over-turning moment and cross-axial restraint and include a stand-alone external) medium-pressure hydraulic power supply.

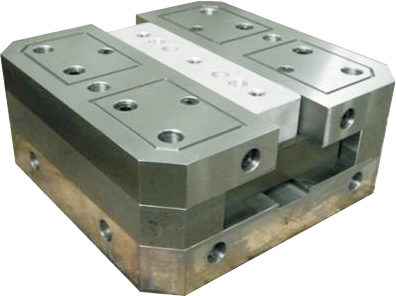

·STL slip tables design with T-slot bearings and long-stroke, have higher over-turning moment and cross-axial restraint and include a stand-alone (external) high-pressure hydraulic power supply, but need higher precision machining and installation.



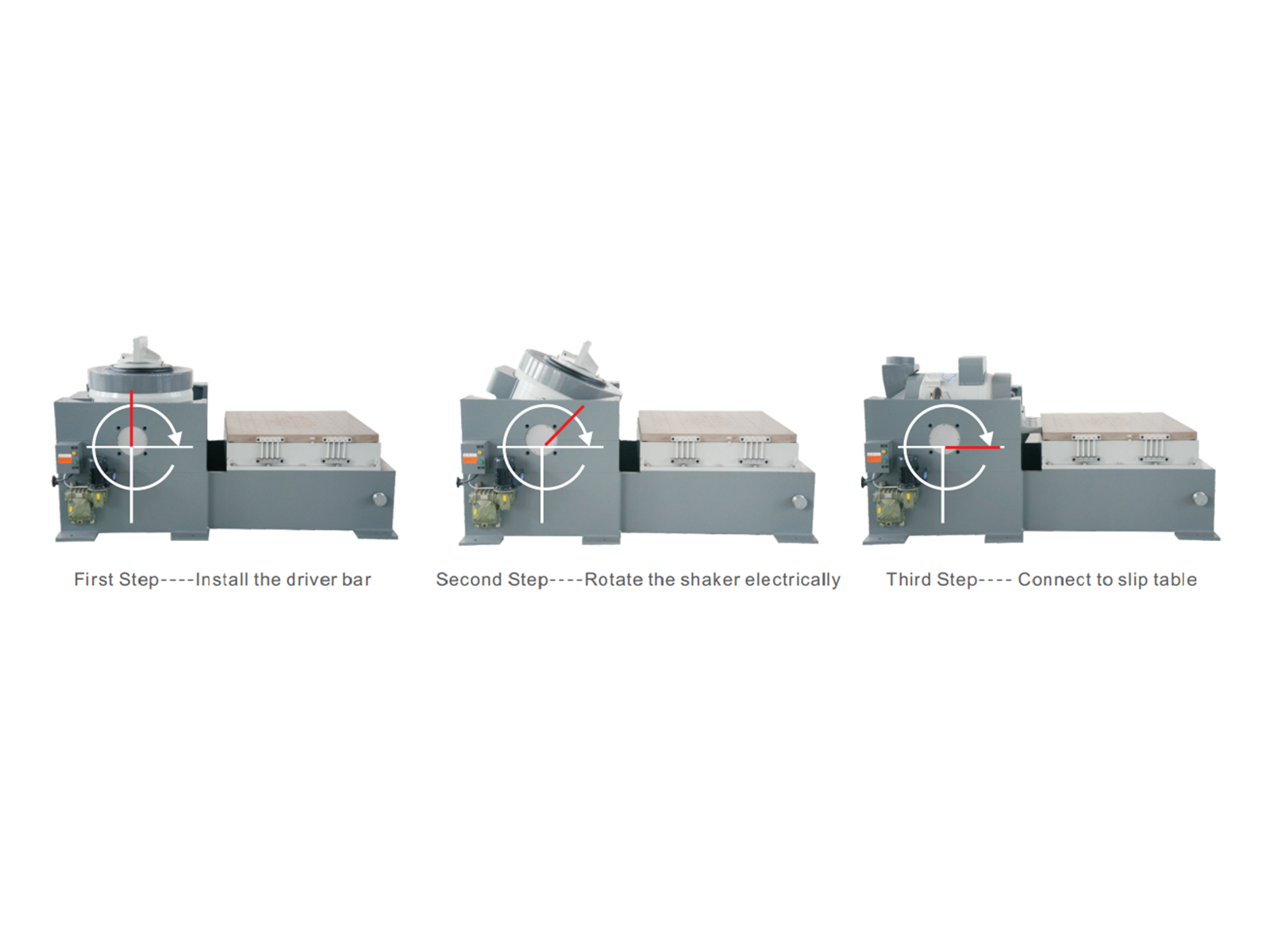

Slip Table Installation Method

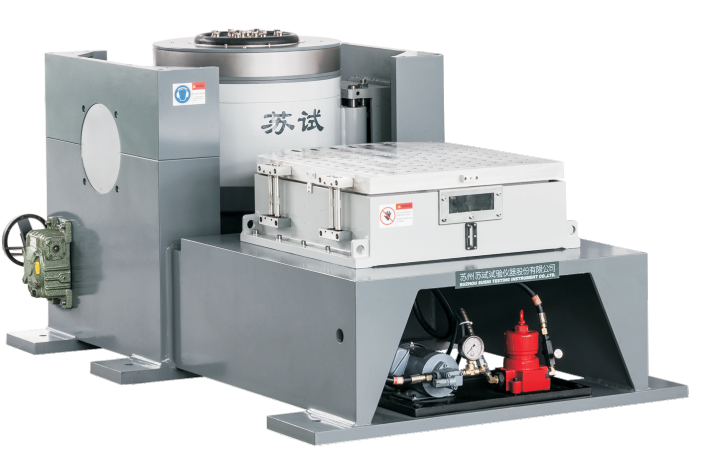

  • Non-base Installation

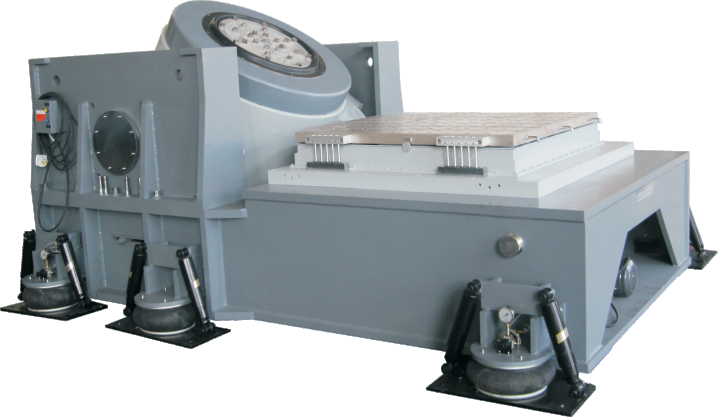

  • Air-isolation Installation



General Guide Rail Types



SV= Low-pressure oil-film design with V-groove bearings



STL= Long-stroke high-pressure design with T-slot bearings



ST= High-pressure design with T-slot bearings

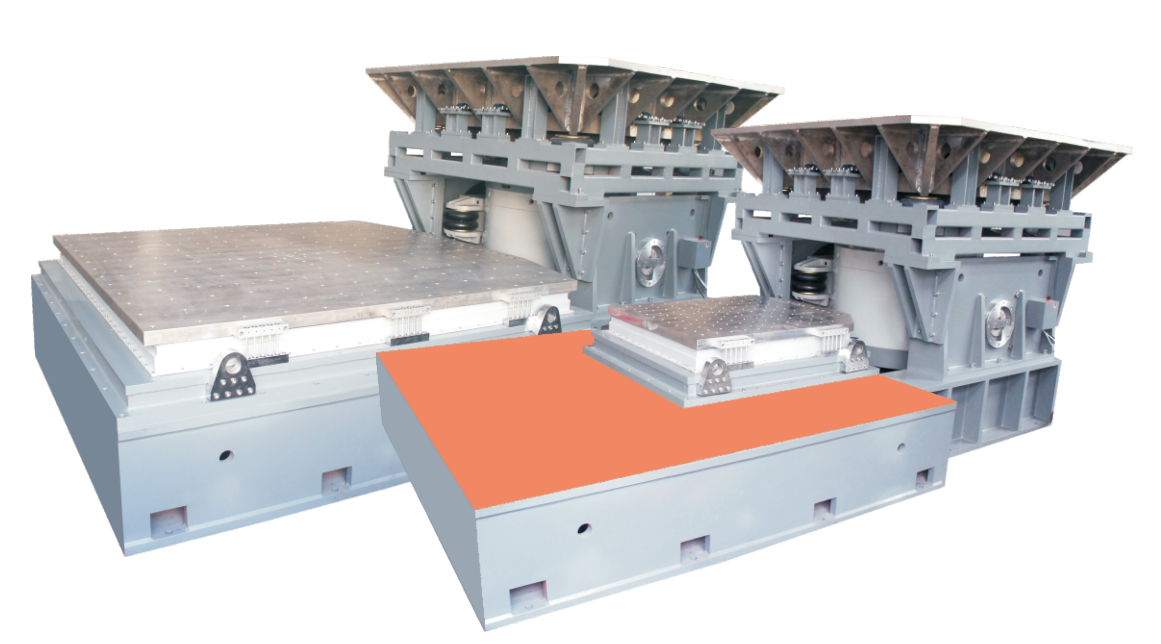

Replaceable Slip Table and Expandable Slip Table

The replaceable and expander slip tables are mainly used to meet the different test requirements of DUT with different size, loading capacity, can improve the equipment efficiency. When the DUT is light and small and must do the test with large acceleration, you can use the small slip table or the main slip table. Otherwise, you can use the large slip table or the auxiliary slip table. The machining between the replacement slip table and mono-base is precision, has accuracy positioning, is easy to replace. After replacing the slip table, don't need any adjustment, simply connect the armature, then it can be used.

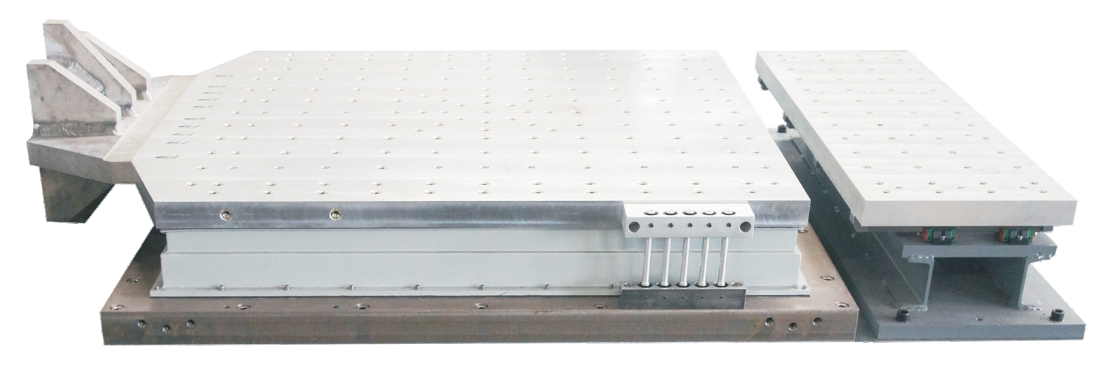

Expandable Slip Table



Replaceable Slip Table ( Patent：ZL201320656826.4 )

Parameter Table
Slip Table Motion Part Mass (kg) Maximum Working
Scale Dimension (mm) Rail Type Test Payload (kg) Frequency(Hz)
Aluminum Alloy Magnesium Alloy Sine Random
303 300×300×25 SV 100 9 7 2000 2000
404 400×400×25 150 14 9 2000
400×400×45 200 23 16 2000
505 500×500×25 150 22 16 2000
500×500×45 300 36 25 2000
606 600×600×25 200 30 21 2000
600×600×45 300 50 34 2000
707 700×700×45 SV/ST 300/3000 66/90 44/65 2000/1500
808 800×800×45 SV/ST/STL 400/3000/6000 85/110/102 56/81/73 1500
909 900×900×45 SV/ST/STL 400/3000/6000 107/132/124 70/95/87 1500
1010 1000×1000×50 SV/ST/STL 500/6000/10000 149/166/139 99/121/94 1250
1212 1200×1200×50 SV/ST/STL 500/6000/12000 210/254/227 138/181/154 1250
1515 1500×1500×50 SV/ST/STL 800/10000/15000 328/408/360 215/292/244 1000
1818 1800×1800×50 SV/ST/STL 1000/10000/15000 466/553/542 304/348/337 800
2020 2000×2000×60 SV/ST/STL 1000/15000/20000 685/875/863 445/598/586 650
2525 2500×2500×60 ST/STL 20000/30000 1214/1195 909/890 500



Note:

1.Mass of motion parts doesn't include armature and connection parts.

2. Tail type:

SV--inversed V-shape oil-film rail;

ST--T-shape static-pressure rail;

STL--T-shape long-stroke static-pressure rail;

3. Slip table model number consists of rail type and table dimension, e.g. ST-1010 means T-shape static-pressure rail, table size 1000*1000*50mm horizontal slip table.

4. Can customize specialized dimension horizontal slip table according to client need.

5. 5% error is permitted for motion part mss and maximum working frequency.
