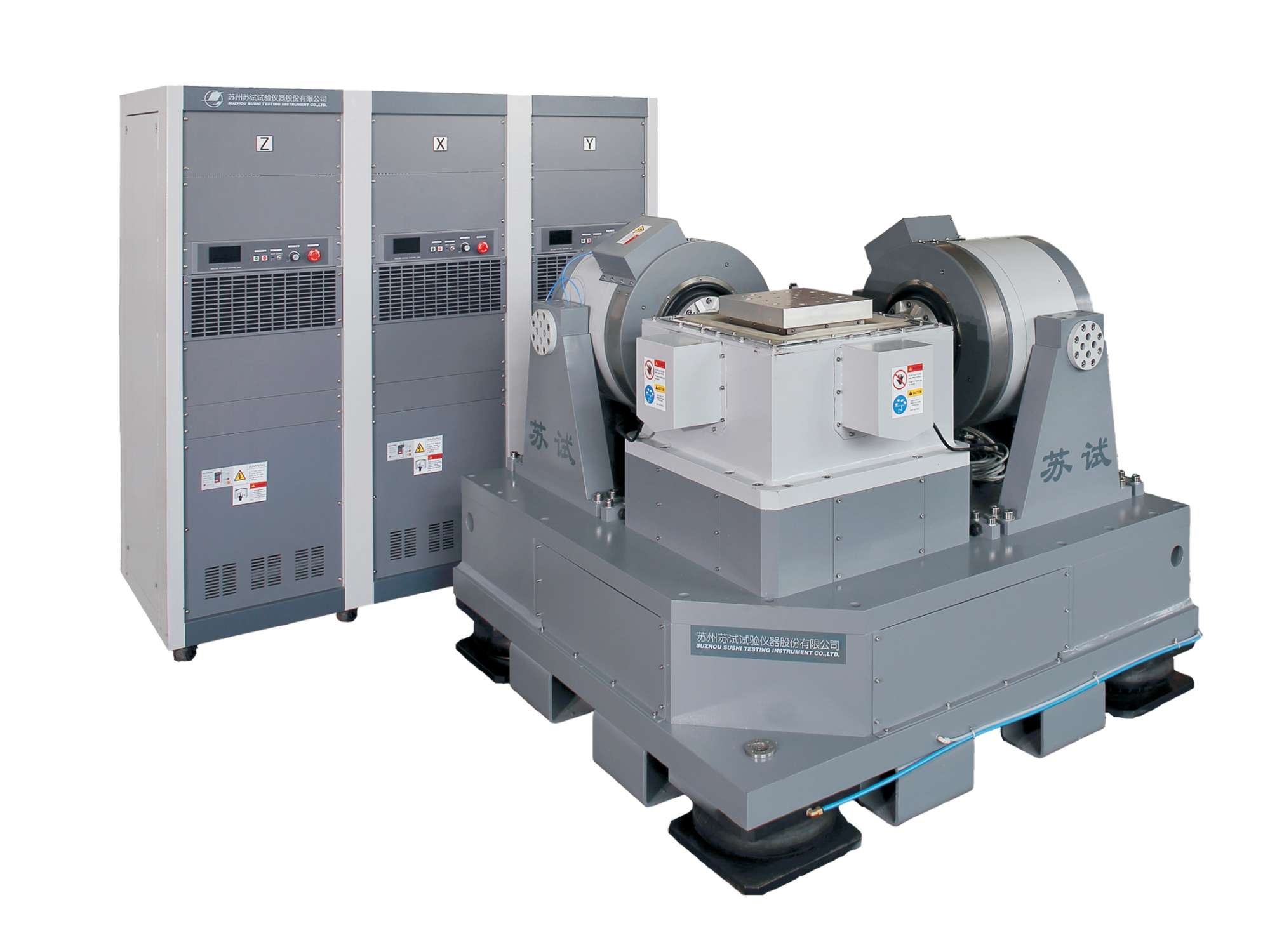

MAV Electrodynamic Shaker

Email: shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

MAV Electrodynamic Shaker

Multi Axis Multi Point - MAV Series.pdf

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Introduction

MAV series system is widely used in automobile manufacturing, transportation, oil mining/transportation and other industries. It has the advantages of simulating realistic environment, improving work efficiency easy to complex tests, such as temperature, humidity, vibration combined tests.

Features

·Hydrostatic integration vibration coupling technology.

·Masses of the moving elements in each axis are basically equal. Large displacement, small interfering with each other axis.

·Integration design, shakers are mounted on a base.

·The base has air springs, which doesn’t need the foundation.

·Automatic static and dynamic armature centering.

·Shakers, amplifiers, oil source, gas source are protected through linked action.

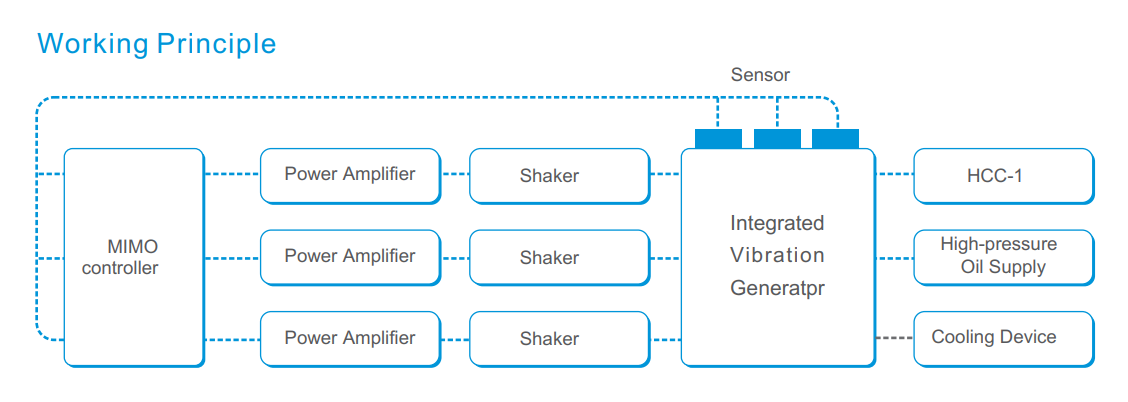

Working Principle

Parameter Table

Model	Max. Working Freq（Hz)	Sine Force（kN)(Per. Axis)	Random Force（kNrms)(Per.Axis)	Max. Vel.（m/s)
MAV-3-2000H	2000	19.6	13.72	1.2
MAV-3-2000M	500	19.6	13.72	1.2
MAV-3-2000L	200	19.6	9.8	1.2
MAV-3-3000H	2000	29.4	20.58	1.1
MAV-3-3000M	500	29.4	14.7	1.1
MAV-3-3000L	200	29.4	14.7	1.1

Note: The letter (H, M or L) in the system model means the size of the working table.

H：Working Table Size is smaller than 500mm×500mm

M：Working Table Size is larger than 500mm×500mm, but smaller than 800mm×800mm

L：Working Table Size is larger than 800mm×800mm
