Large Working Table
Large Working Table

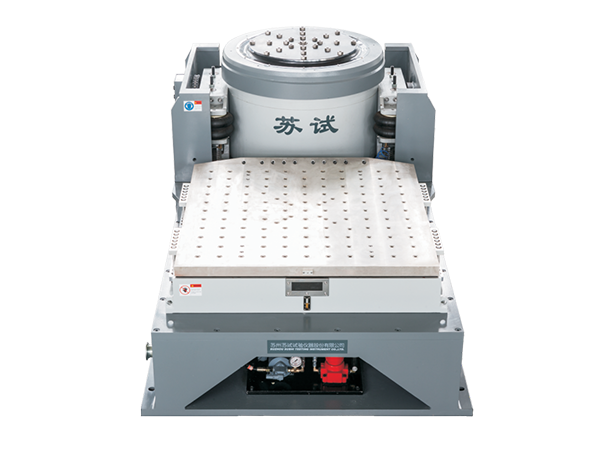

DT series large working-table vibration test system can meet the vibration test with large specimen and high test frequency.
Features
·Using the new inversed-conical structure of armature for high stiffness and good frequency response
·The diameter of working-table is Φ640mm, much larger than the other series of systems.
·Adopt the optimization design of field coils and cooling duct structure.
·The armature is made of Magnesium alloy, which can reduce the weight of armature, no-load acceleration of DT series system can up to 80g.
| Model | DT-3200-36 | DT-5000-60 |
| Usable Frequency Range (Hz) | 2～2000 | 2～2300 |
| Rated Sine Force (kN) | 31.36 | 49 |
| Max Acceleration (m/s²) | 784 | 784 |
| Max Velocity (m/s) | 1.8 | 1.8 |
| Max Displacement (mm) | 51 | 51 |
| Max Static Payload (kg) | 500 | 1000 |
| Vibrator | DT-3200 | DT-5000 |
| Effective Armature Mass (kg) | 40 | 62.5 |

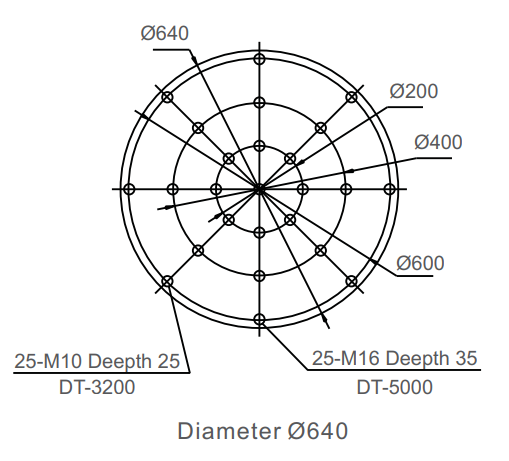

| Armature Diameter (фmm) | 640 | 640 |
| Cross-axial Allowable Eccentric Monent (N×m) | 490 | 980 |
| Dimensions Uncrated (W x H xD ) (mm) | 1190×1100×890 | 1516×1124×1043 |
| Vibrator Weight Uncrated (kg) | 2200 | 4200 |
| Power Amplifier | SA-36 | SA-60 |
| Rated Power Output (kVA) | 40 | 60 |
| Dimensions Uncrated (W x H xD ) (mm) | 550×1750×850 | 550×1850×850 |
| Amplifier Weight Uncrated (kg) | 450 | 650 |
| Amplifier Cooling Method | Switching | |
| Amplifier Required Power (kVA) | 45 | 65 |
| Cooling Method | Air-cooled | |
| Blower Model | FJ-3000 | FJ-6000 |
| Flow (m3/min) | 40 | 78 |
| Pressure (Pa) | 5390 | 9800 |
| Ratec Power (kW) | 7.5 | 22 |
| System Required Power (kVA) | 52 | 87 |
