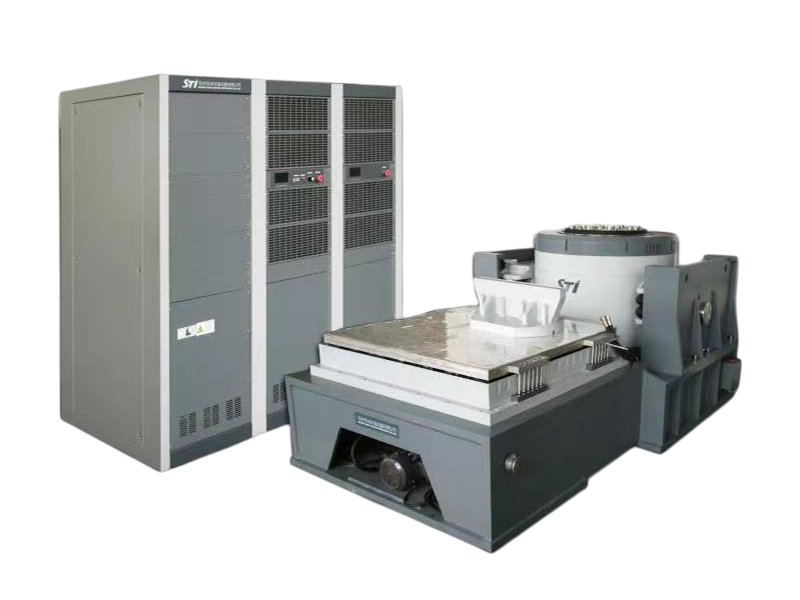

Water-cooled Electrodynamic Shaker 12T + 1.2m Slip Table

Water-cooled Electrodynamic Shaker 12T + 1.2m Slip Table

shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

Water-cooled Electrodynamic Shaker 12T + 1.2m Slip Table
Water-cooled Electrodynamic Shaker 12T + 1.2m Slip Table
Water-cooled Electrodynamic Shaker 12T + 1.2m Slip Table
Standard Model - DC Series (Water-cooled).pdf
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Introduction

Water-cooled electric vibration test systems are mainly for large force tests and large specimens. This series is widely used in aviation, aerospace, weapons, rail transportation, automotive, ships and so on.



Features

·High-strength dynamic design of armature structure to improve the structural strength of the armature.

·New design of short-circuit structure, to improve the cooling efficiency.

·Use the latest winding reinforcing material to wind the armature.

·Secondary circulation cooling system, allowing heat generating components to have long service life and reliably.

·Use the parallel waterway design, to improve the cooling efficiency, reduce the cooling water temperature rise rate, and reduce the requirements of environmental temperature.

·Adopt three components of the cooling structure to ensure all heat-generating components can cool sufficiently.

·Linear bearing air spring vibration isolation with excellent isolation and guidance capacity

·Upper and lower roller guide structure, optional hydrostatic bearing guide, higher overturning moments



Parameter Table
Model DC-6500-65 DC-8000-80 DC-10000-100 DC-12000-120 DC-16000-160 DC-20000-200 DC-30000-300 DC-40000-400
Usable Frequency Range (Hz) 2~2700 2~2700 2~2500 2~2500 2~2200 2~2200 2~1900 2~1700
Rate Force (kN) 63.7 78.4 98 117.6 156.8 196 294 392
Shock Force (6ms) (kN) (63.7×2)※ (78.4×2)※ (98×2)※ (117.6×2)※ (156.8×2)※ (196×2)※ 294×2 392×2
Max Acceleration (sine) (m/s²) 980 980 980 980 980 980 980 980
Max Velocity (m/s) 2 2 2.00☆ 2.00☆ 2.00☆ 2.00☆ 2 2
Max Displacement (mm) 51★ 51★ 51★ 51★ 51★ 51★ 51 51
Max Static Payload (kg) 1000 1000 1500 1500 2000 2000 3200 4000
Vibrator DC-6500 DC-8000 DC-10000 DC-12000 DC-16000 DC-20000 DC-30000 DC-40000
Effective Armature Mass (kg) 65 80 100 100 160 180 250 380
Armature Diameter (фmm) 445 445 560 560 640 640 760 860
Cross-axial Allowable Eccentric Monent (N×m) 4900 4900 9800 9800 12000 12000 14700 19600
Dimensions uncrated (W x H xD ) (mm) 1520x980x1200 1520x980x1200 1832x1150x1325 1832x1150x1325 2250x1330x1200 2250x1330x1250 2400×1500×1700 2900x1700x1860
Vibrator weight uncrated (kg) 4000 5500 7500 7500 9000 9000 16800 23500
Power Amplifier SA-65 SA-80 SA-100 SA-120 SA-160 SA-200 SA-300 SA-400
Rated Power Output (kVA) 70 85 120 140 180 240 320 440
Dimensions Uncrated    (W x H xD ) (mm) 1160*1920*850 1740*1920*850 2320*1920*850 2900*1920*850 3480*1920*850
Amplifier Weight Uncrated (kg) 1200 1650 2000 2100 2450 2500 3500 4000
Working Method Switching
System Required Power (kVA) 115 135 160 180 220 260 420 510
Heat Exchanger DHE-150 DHE-250 DHE-400
Cooling Water Flux (L/min) 250 330 400 500
Heat Exchanger weight uncrated (kg) 400 500 600
Ratec Power (kW) 2 3.5 6
Dimensions including silencer (W x H x D)(mm) 750*1500*1200 750*1500*1200 900*1500*1200
Cooling Method Secondary Cycle Water Cooling



Notice: ★means this system's displacement can expand to 76mm(p-p), ☆means the velocity can expand to 2.5 m/s,
