Product Introduction

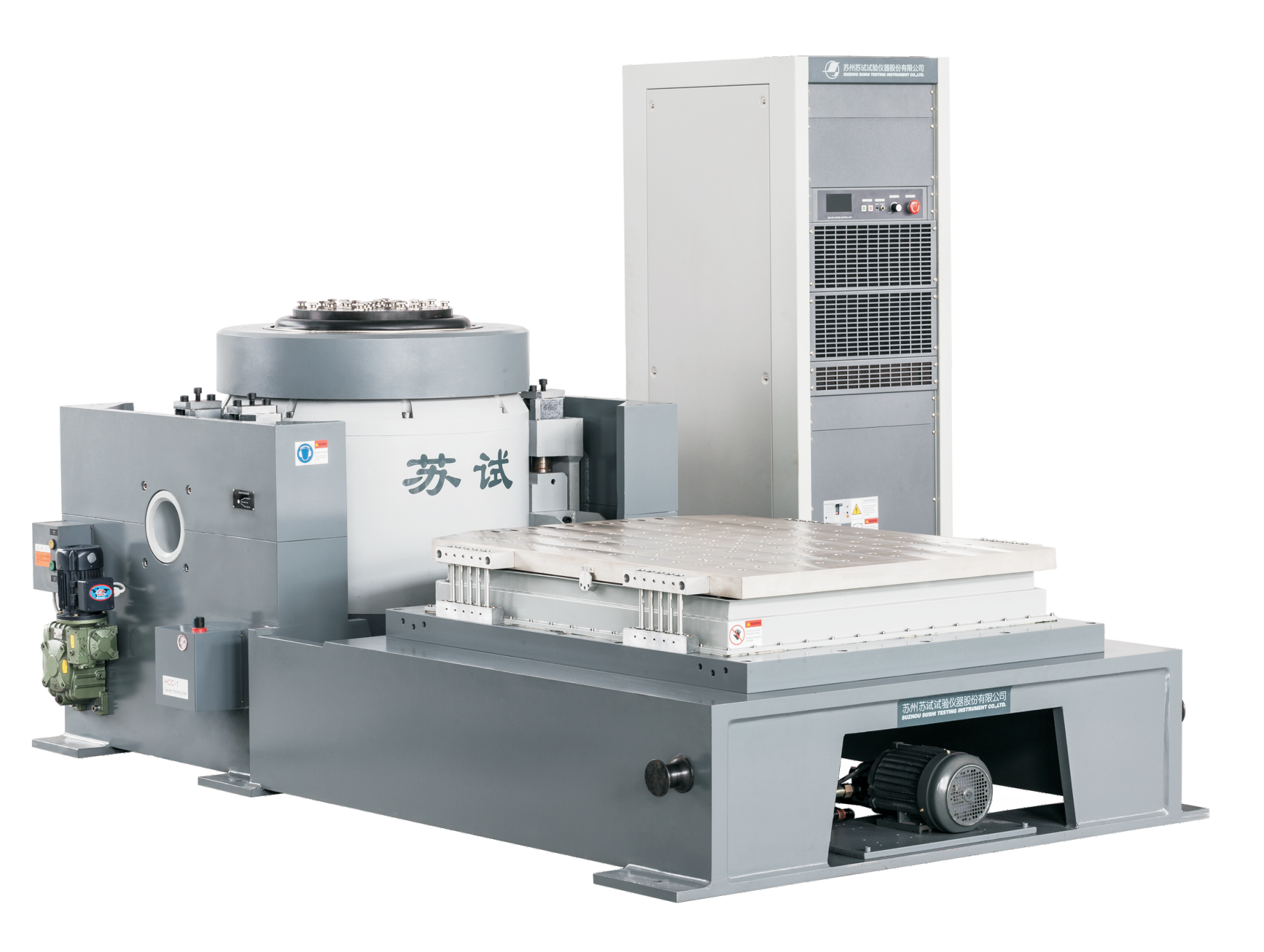

DL series long-stroke electro-dynamic vibration test system is mainly used for electronic components, auto parts and coastal defense ships which have more strict requirements for the displacement of the system. And DL series system is applicable to the United States ISTA standard.



Features

·Function of Automatic static and dynamic armature centering

·Unique upper suspension system to make the system has larger displacement and higher velocity. DL series system has 100 mm (p-p) continuous sweep displacement, 2.4 m/s sine sweep velocity and the working frequency is more than 2000 Hz.



Parameter Table
Model DL-3000-40 DL-4000-50 DL-5400-60
Usable Frequency Range (Hz) 1-2800 1-2200 1-2300
Rated Sine Force (kN) 29.4 39.2 52.9
Max Acceleration (m/s²) 784 784 784
Max Velocity (m/s) 2.4 2.4 2.4
Max Displacement (mm) 100 100 100
Max Static Payload (kg) 300 500 800
Vibrator DL-3000 DL-4000 DL-5400
Effective Armature Mass (kg) 37.5 49 67.5
Armature Diameter (mm) 340 445 445
Cross-axial Allowable Eccentric Monent (N×m) 490 980 1500
Dimensions Uncrated (W x H xD ) (mm) 1220*1185*930 1470×1310×1000 1570×1320×1100
Vibrator Weight Uncrated (kg) 3000 3500 4300
Power Amplifier SA-40 SA-50 SA-60
Rated Power Output (kVA) 40 50 60
Dimensions Uncrated (W x H xD ) (mm) 580×1700×850 580×1700×850 580×1700×850
Amplifier Weight Uncrated (kg) 450 650 680
Amplifier Cooling Method Switching
Amplifier Required Power (kVA) 45 60 70
Blower FJ-3000 FJ-5000 FJ-6000
Flow (m3/min) 40 56 78
Pressure (Pa) 5390 5816 9800
Ratec Power (kW) 7.5 15 22
Cooling Method Air-cooled
System Required Power (kVA) 52 75 92
