Standard Air-cooled Electrodynamic Shaker
Standard Air-cooled Electrodynamic Shaker

Standard Air-cooled Electrodynamic Shaker

shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

Standard Air-cooled Electrodynamic Shaker
Standard Air-cooled Electrodynamic Shaker
Standard Air-cooled Electrodynamic Shaker
Standard Model - DC Series (Air-cooled).pdf
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Introduction

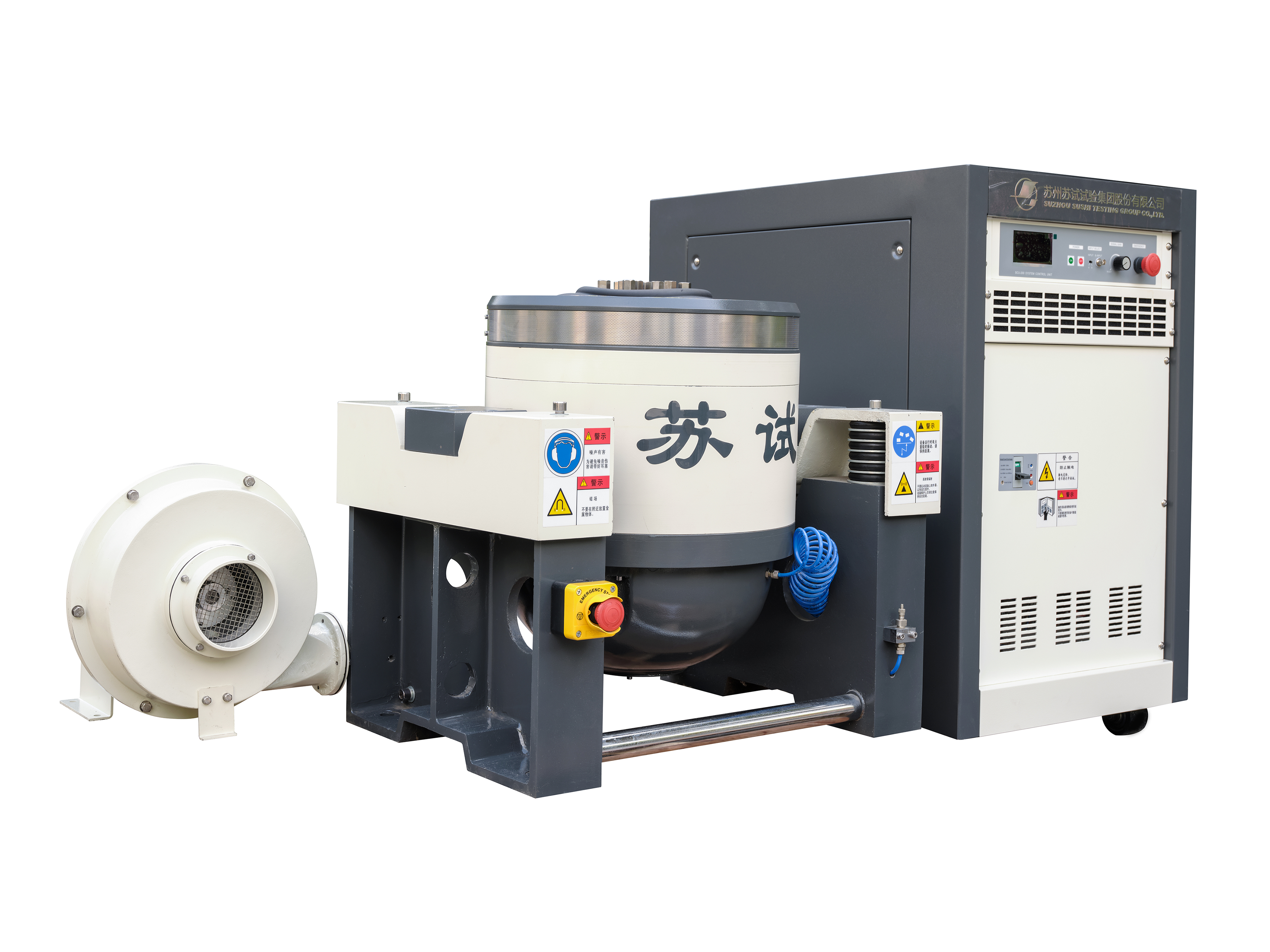

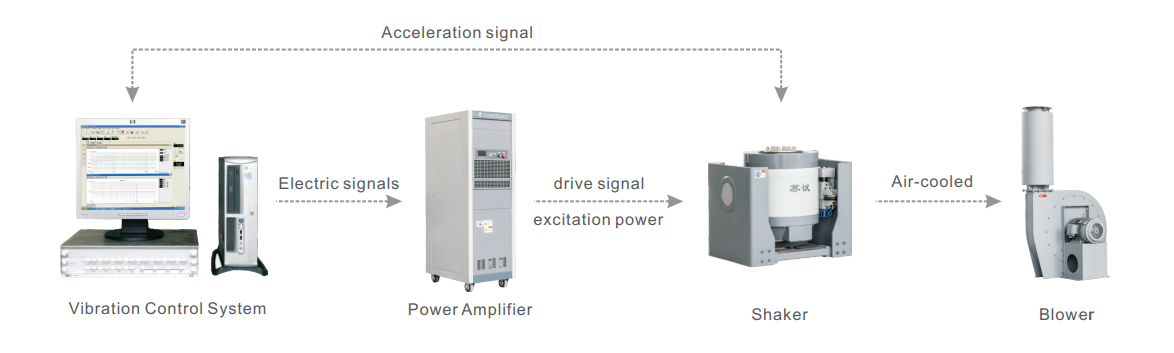

Standard air-cooled electro-dynamic vibration system is suitable for a variety of typical vibration for auto parts, electronic components, aerospace products stress screening and simulation test requirements.



Features

·Upper and lower guidance structure, high anti-overturning, good guidance ability, wide working frequency

·Center spring loading structure, high payload capacity

·Air-spring isolation design, lower resonance frequency of shaker body

·Dual magnetic structure, lower stray flux density

·Frameless armature, much lighter, good rigid, high first-resonance frequency

·A full range of protection function, convenient repair and maintenance



Parameter Table
Model DC-100-2 DC-200-3 DC-300-3 DC-600-6 DC-1000-15 DC-2200-26 DC-3200-36 DC-4000-40 DC-5000-50 DC-6000-60 DC-7500-80
Usable Frequency Range (Hz) 2～4500 2～4500 2～5000 2～5000 2～3500 2～3000 2～2500 2～2800 2～2700 2～2500 2～2400
Rate Sine Force (kN) 0.98 1.96 2.94 5.88 9.8 21.56 31.36 39.2 49 58.8 73.5
Max Acceleration (m/s²) 490 980 980 980 980 980 980 980 980 980 980
Max Velocity (m/s) 2 2 2 2 2 2 2 2 2 2 2
Max Displacement (mm) 25 25 40 51 51 51* 51* 76 51* 51* 76
Max Static Payload (kg) 70 70 120 200 200 300 500 500 1000 1000 1000
Vibrator DC-100 DC-200 DC-300 DC-600 DC-1000 DC-2200 DC-3200 DC-4000 DC-5000 DC-6000 DC-7500
Effective Armature Mass (kg) 2 2 3 6 10 22 32 40 49 58 75

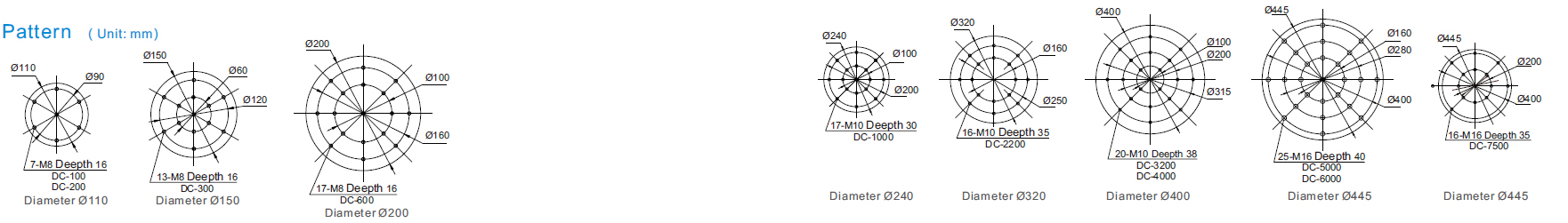

Armature Diameter (φmm) 110 110 150 200 240 320 400 400 445 445 445
Cross-axial Allowable Eccentric monent (N×m) 196 196 196 300 300 490 490 490 980 980 980
Dimensions uncrated (W x H x D ) (mm) 660×630×530 720×660×540 790×700×550 900×810×570 1080×990×860 1200×1120×900 1240×1140×960 1650×1180×1060 1580*980*1220
Amplifier weight uncrated (kg) 410 410 454 620 1150 1600 2150 3000 3800 3800 5500
Power Amplifier SA-2 SA-3 SA-3 SA-6 SA-15 SA-26 SA-36 SA-40 SA-50 SA-60 SA-80
Rated Power Output (kVA) 2 3 3 6 15 30 40 40 50 60 80
Dimensions uncrated (W x H xD ) (mm) 550×950×850 550×1750×850 550×1850×850
Amplifier weight uncrated (kg) 230 230 230 240 290 410 450 450 650 680 850
Working Method Switching Switching
Amplifier Required Power (kVA) 3.5 4.5 5.5 12 19 35 45 52 65 72 90
Cooling Method Air-cooled
Blower Model Number FJ-200 FJ-1000 FJ-3000 FJ-5000 FJ-6000 FJ-8000
Flow (m3/min) 4 20 40 56 78 90
Pressure (Pa) 2100 3102 5390 5816 9800 12000
Power Requirements (kW) 0.75 4 7.5 15 22 37
System Required Power (kVA) 4.2 5.2 6.2 16 23 42 52 67 80 94 115



Notice: “*” means this system's displacement can expand to 76mm(p-p).
