Digital Vibration Controllers

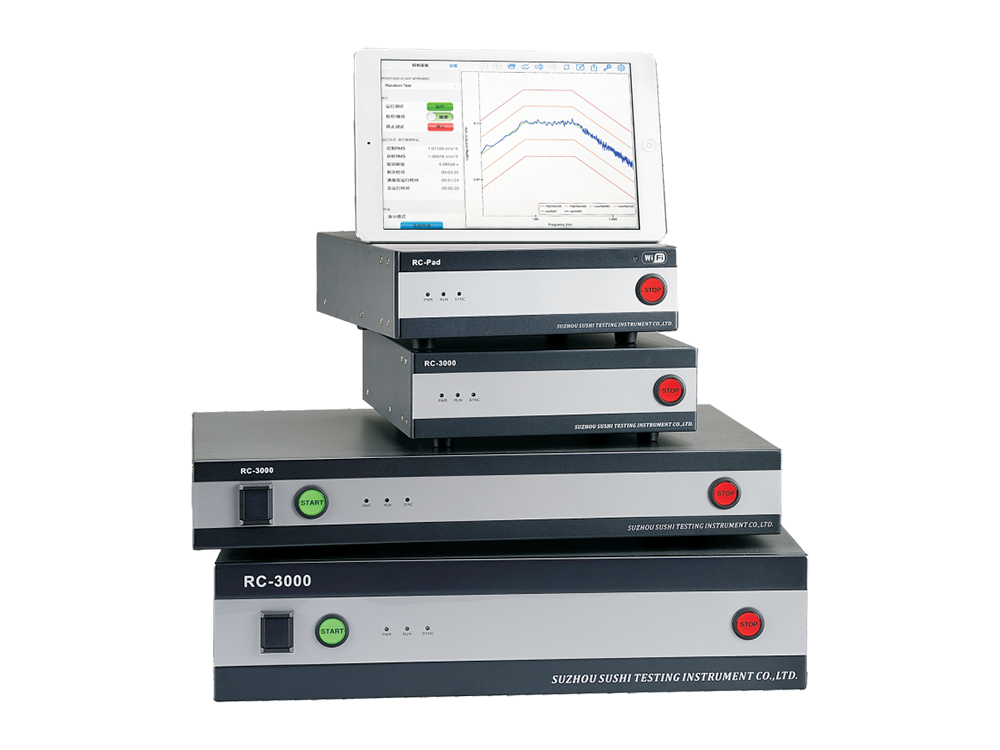

RC-3000 is aworld-class vibration control system, has full range of functions of vibration tests and dynamic signal analysis. RC-3000 is different from the traditional controller, it uses a LAN directly integrated embedded DSP, which enhances the control performance, system reliability and exceptions protection ability. RC-3000 vibration controller has high reliability and control accuracy and wide dynamic range, the functions of improved  automatic safety detection and protection and power-down data protection, and can do the long continuous recording time-domain data and off-line analysis.

Dynamic Signal Analysis

RC-3000 controller with more than 4 channels can choose to add the following dynamic signal analysis functions:

• Real-time analysis
• PC offline post-processing

P. 1

Safety

• Adopt automatic safety test system to protect test equipment and DUT.

System protection: system parameter setting protection, vibration table limit protection, control target spectrum up/down stopping protection, control channel root-mean-square value (RMS) protection, the front panel manual emergency interruption,  remote operating handle emergency interruption, manually break in the software interface, pre-tested protection, self-test maximum output voltage protection, run maximum output voltage protection.

• Built-in power-down protection circuit

The system can protect the power supply when power-down or the computer crashed. And the system can complete the storage of test data, smoothing down the PC and other activities. Also, the built-in 4G flash in each module can fully meet storage needs.

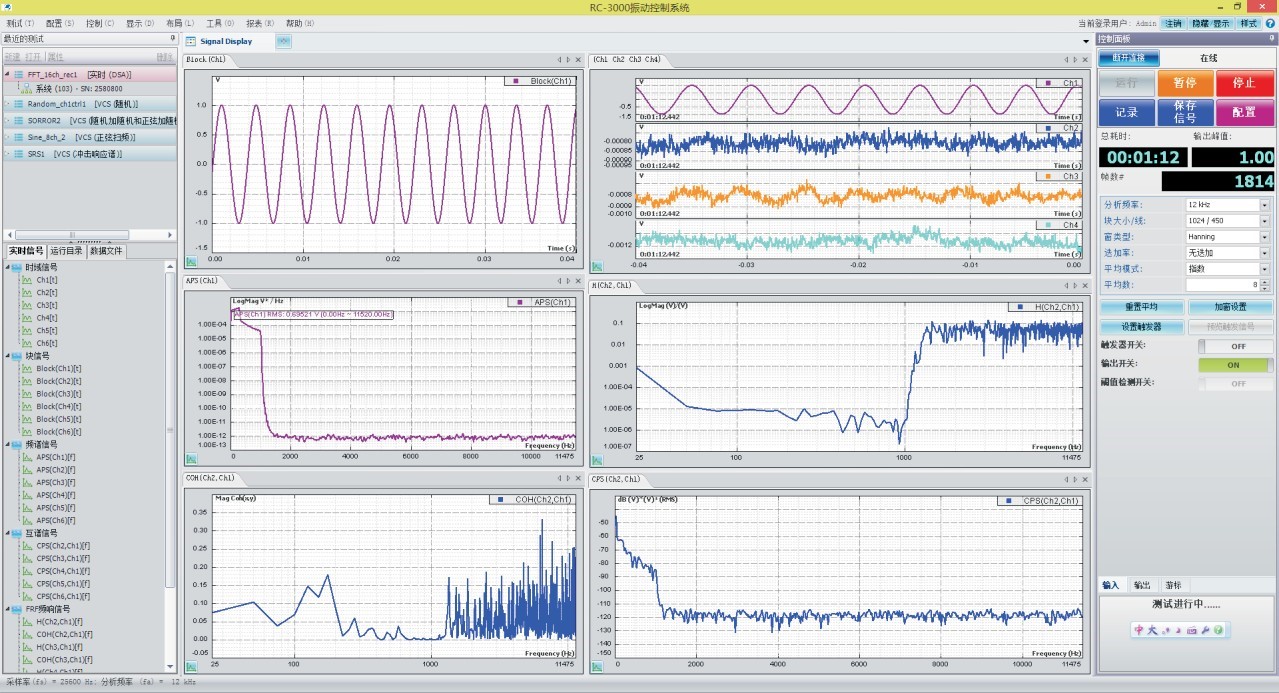

Test Interface

P. 2

The program interface of RC-3000 is very simple.

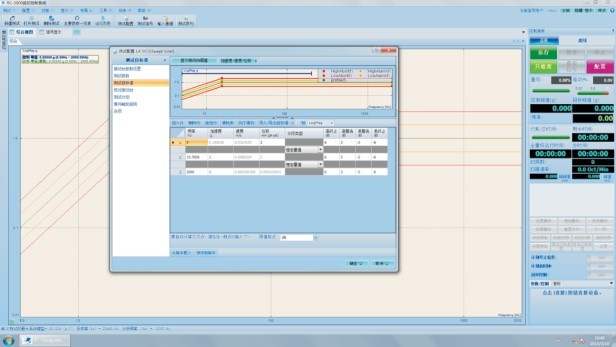

Simplified Definition

P. 3

The function of “Simplified Definition” makes the general test definitions become much easier.

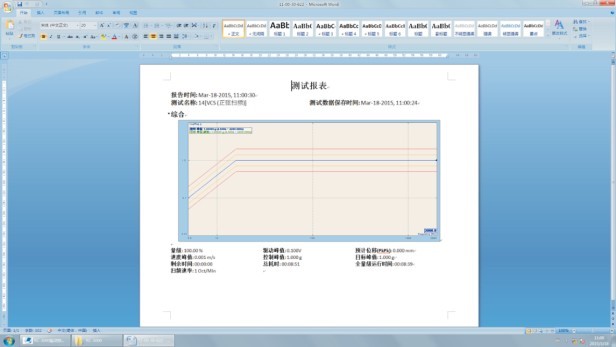

Report Generator

P.4

The system has the function of generating the reports in Word format.
