Casting Head Expander
Casting Head Expander
Casting Head Expander

Casting Head Expander

shanyf@chinasti.com

Tel: 008616651737187

Whatsapp: 8616651737187

Casting Head Expander
Casting Head Expander
Casting Head Expander
Head Expander.pdf
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Parameter Table
Expander Model Dimensions (mm) Max. Working Frequency (Hz) Shape Material
Sine Random Φ110 Φ150 Φ200 Φ240 Φ320 Φ400 Φ445 Φ560 Φ640
TBR-250-60L 250×60 2000 2000 4.5kg 4. 5kg Circle AIuminum AIloy
TBR-300-70L 300×70 2000 2000 6kg 6kg 7kg 7kg
TBR-400-80L 400×80 1200 2000 11 kg 11 kg 13kg 13 kg
TBR-400-200L 400×200 2000 2000 23kg 25kg 25kg
TBR-500-80L 500×80 1200 2000 18kg 20 kg 23kg
TBR-500-150L 500×150 1500 2000 28kg 30 kg 32kg
TBR-600-250L 600×250 1500 2000 35kg 38kg 40kg 45kg
TBR-630-150L 630×150 1200 2000 42kg 45kg 45kg 50kg
TBR-630-250L 630×250 1200 2000 70 kg 70kg 80kg 85kg
TBR-750-250L 750×250 1200 2000 85kg 90kg 95kg 100 kg
TBR-900-200L 900×200 1200 2000 11 0kg 120kg 120 kg 130 kg
TBR-1000-250L 1000×250 1500 2000 200kg 210 kg 220kg 240kg 260kg
TBR-1200-300L 200×300 1200 2000 290 kg 300 kg 31 0kg 320kg
TBR-1500-400L 1500×400 1000 2000 490 kg 500 kg 520kg
TBS-300-30L 30×300×30 1000 2000 8kg 8kg 8kg Plate
TBS-400-30L 400×400×30 600 2000 13kg 13kg 13kg 13kg 13kg
TBS-500-45L 500×500×45 500 2000 16kg 16kg 16kg 16 kg 16kg Gird
TBS-630-45L 630×630×45 400 2000 24kg 24kg 24 kg 24kg 24kg 24 kg
TBS-800-70L 800×800×70 350 2000 62kg 62kg 62 kg 62 kg 62 kg 62kg
TBS-1000-110L 1000×1000×110 350 1500 14 0kg 140kg 140 kg 140 kg 140kg 140kg
TBS-1200-130L 1200×1200×130 300 1200 1 90kg 190 kg 190 kg 190kg 190kg
TBS-1500-200L 1500×1500×200 200 1000 500 kg 500 kg 500kg

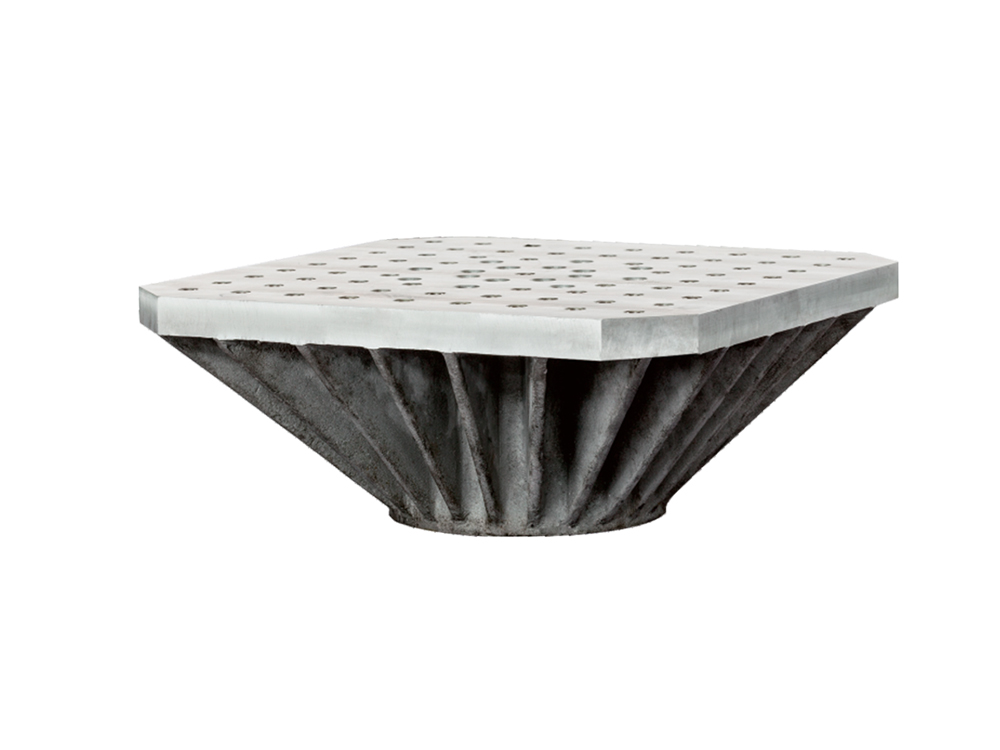

TBS-500-200L 500×500×200 2000 2000 45kg 40kg 50kg 50 kg 50 kg Inversed Square Trapezoid Body
TBS-600-250L 600×600×250 2000 2000 62kg 62kg 72 kg 75kg 80 kg
TBS-700-200L 700×700×200 1500 2000 90kg 90kg 95kg 95kg 100kg
TBS-800-200L 800×800×200 1500 2000 10 0kg 115kg 120 kg 130 kg 130kg
TBS-1000-250L 1000×1000×250 1200 2000 180kg 190 kg 200kg 210kg 220kg
TBS-1200-300L 1200×1200×300 1000 2000 290kg 290kg 300kg 330 kg 3 40kg
TBS-1500-375L 1500×1500×375 800 2000 500 kg 520 kg 540kg



Note:

1. In model type, "L" refer to Aluminum alloy. For Magnesium alloy use I etter "M"

2. Table mass mentioned all above refer to aluminum alloy tablee mass. Magnesium alloy table mass is 65 % of aluminum alloy ones.

3.Expander referring: TBR refers to circular expander. TBS refers to square expander. TBR-1500-400L means dimension phi1500mm,height 400mm, aluminum vertical expander. TBS-1500-400L means 1500*1500mm, height 400mm, aluminum vertical expander.

4.Can customize expander accord i ng to client requirement except expanders mentioned all above
