Product Introduction

Hydraulic vibration system is widely used in the vibration test of automobile road simulation, large mechanical and electrical products, vibration characteristics and modal testing research of buildings, dams and bridges, earthquake research.



Main use feature

  • Has Low working frequency, large carrying capacity, and long-stroke. Main technical features
  • Large vertical working table uses load auxiliary guide structure, has strong resistance of deflecting load
  • Slip table adopts hydrostatic bearings, has large payload capacity and good anti-overturning performance
  • Horizontal connector is multilayer spring steel plates, and has excellent capability of self-adjusting gap.
  • Servo cylinder is a hydrostatic guide double rob servo cylinder with the advantages of smaller damping, more sensitive response, less wear and longer service life. Compared with the single rob cylinder, double rob cylinder have better waveform reproduction capability and higher resistance of deflection load performance.



Obtained Patents

Horizontal connector components ZL200620152338.X

Integrated component of vertical vibration table loaded guide assembly ZL200620152362.3

Vertical and horizontal integrated hydraulic vibration system ZL200820036335.9

This series system meets the test standards of GB/T21116, GB/T10179, and JJG638 and so on.



Parameter Table

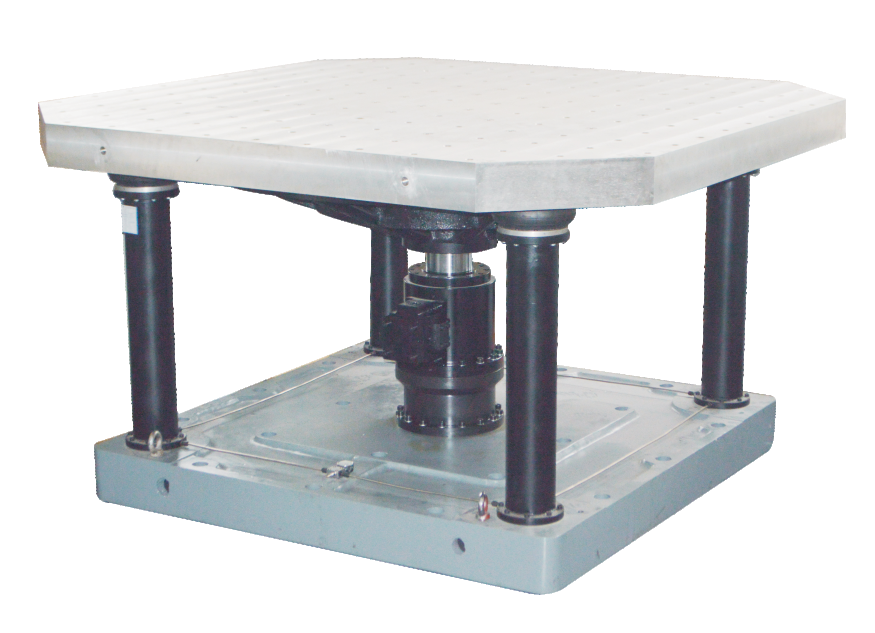

Vertical hydraulic vibration system with large force and big working table

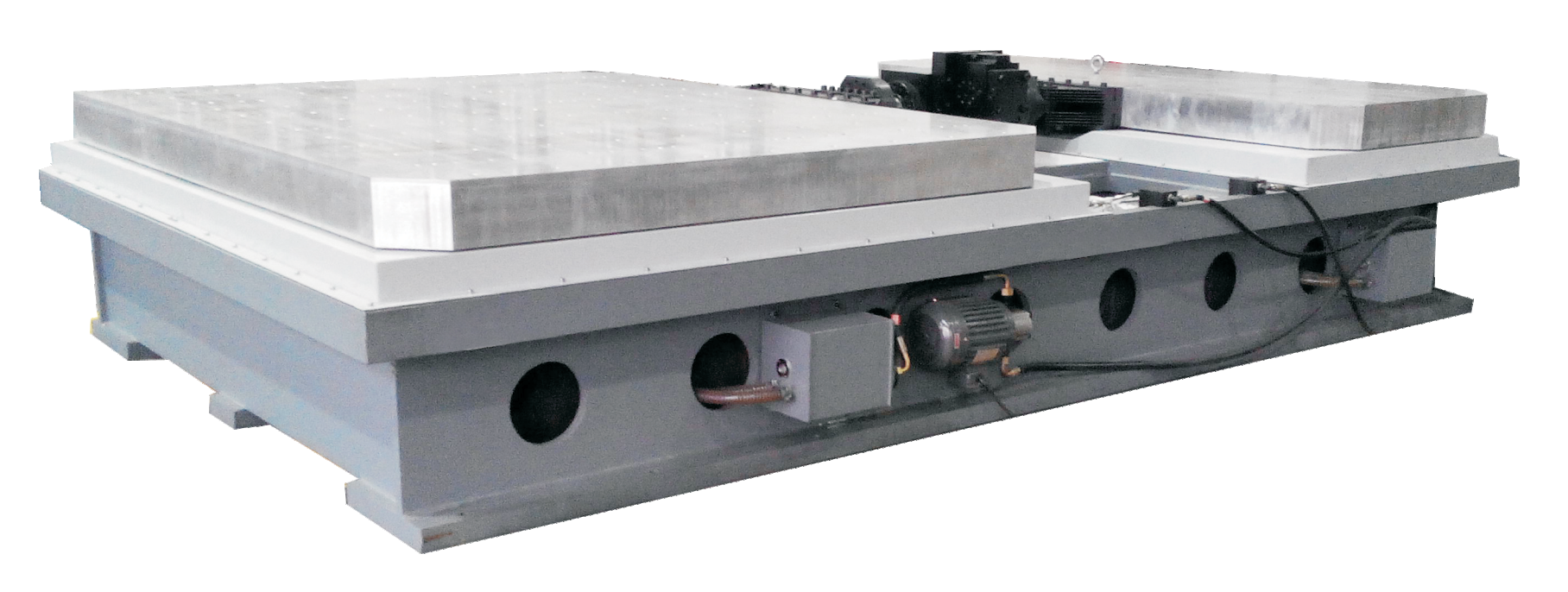

Horizontal hydraulic vibration system with large force and dual working table



Vertical Horizontal Split-type Series:

ES series vertical and horizontal split-type switching mode

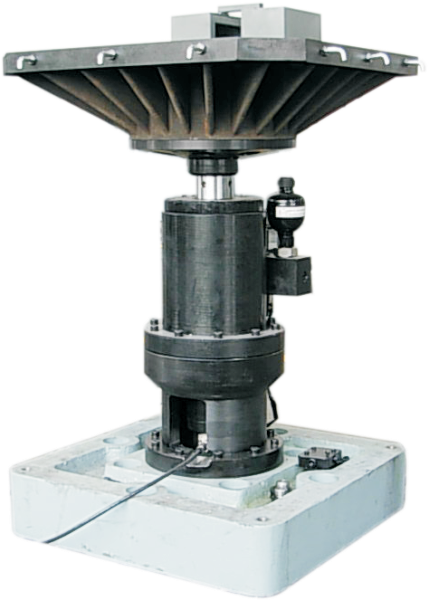

Vertical hydraulic vibration system

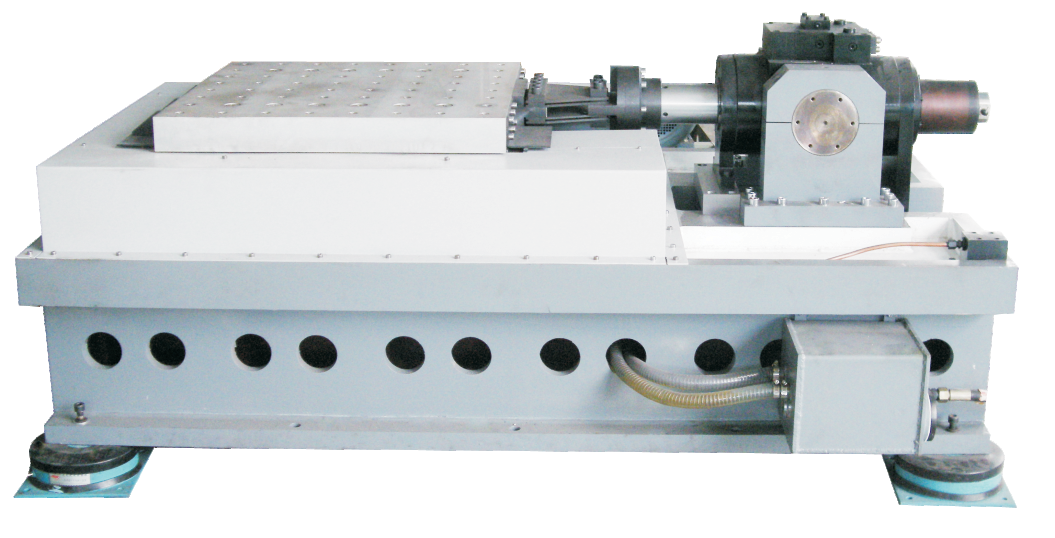

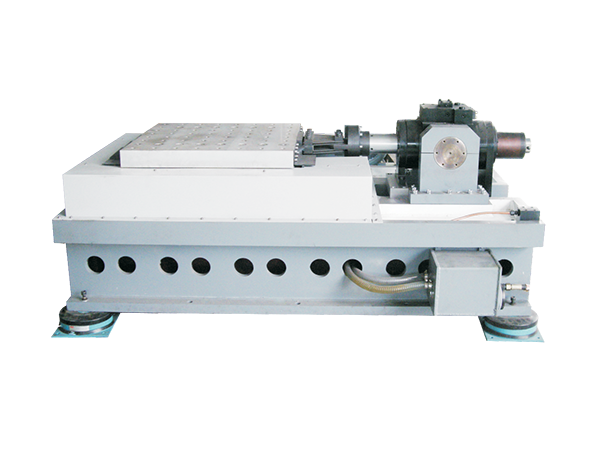

Horizontal hydraulic vibration system



Parameters & Model ES-1 ES-3 ES-5 ES-10 ES-15 ES-30
Max. Sine Force (kN) 10 30 50 100 150 300
Frequency Range (Hz) 0.1～180 0.1～160 0.1～150 0.1～130 0.1～120 0.1～80
Max. Payload (kg) 300 500 1000 2000 3000 6000
Max. Acceleration (Vertical) (m/s²) 40 40 40 40 40 40
Max. Acceleration (Horizontal) m/s²） 40 40 40 40 40 40
Max. Velocity (m/s) 0.5 0.5 0.5 0.5 0.5 0.5
Max. Displacement (mm) 100 100 100 100 100 100
Working Table Dimensions (mm ) 600×600 600×600 800×800 1000×1000 1200×1200 1500×1500
Vertical system Dimensions 600×600×700 600×600×700 800×800×1000 1000×1000×1250 1200×1200×1350 1500×1500×1500
(L×W×H) (mm)
Uncrated Weight (Vertical) (kg) 800 1500 2500 3000 3500 4500
Horizontal system Dimensions 1850×850×850 1850×850×850 2050×1000×850 2300×1300×850 2800×1500×1000 3000×1800×1200
(L×W×H) (mm)
Uncrated Weight (Horizontal) (kg) 3000 3500 5500 8000 9000 10000
Consumed Power (kw) 15 30 45 90 130 235
Cooling Water Volume (t) 3 6 10 20 30 50

Note:

1.The working table dimensions and displacement are customizable.

2.The Dimensions of system are subject to the actual supply.



Vertical and Horizontal Integrated Series:

EY series of vertical and horizontal rotation switching mode.

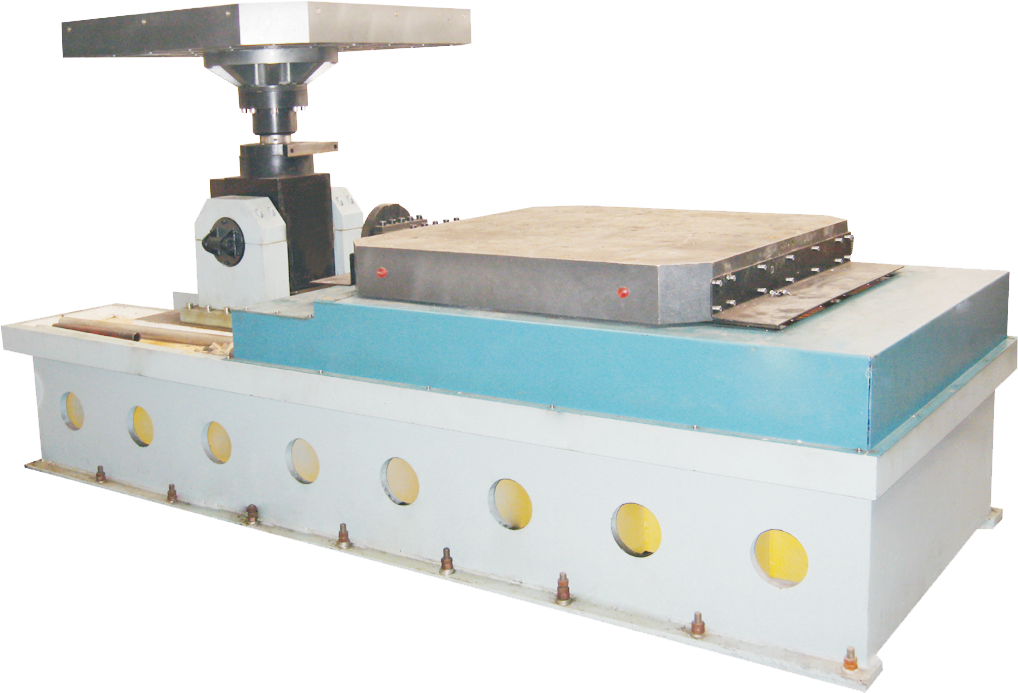

Vertical-horizontal integrated hydraulic vibration system



Parameters & Model EY-1 EY-3 EY-5 EY-10
Max. Sine Force (kN) 10 30 50 100
Frequency Range (Hz) 0.1～180 0.1～160 0.1～150 0.1～130
Max. Payload (kg) 300 500 1000 2000
Max. Acceleration (Vertical) (m/s² 40 40 40 40
Max. Acceleration (Horizontal) (m/s²) 40 40 40 40
Max. Velocity (m/s) 0.5 0.5 0.5 0.5
Max. Displacement (mm) 100 100 100 100
Working Table Dimensions (mm ) 600×600 600×600 1000×1000 1200×1200mm
Dimensions (L×W×H) (mm) 2000×850×1600 2500×850×1700 2800×1300×1700 3300×1500×1700
Uncrated Weight (kg) 4000 6000 8000 10000
Consumed Power (kw) 15 30 45 75
Cooling Water Volume (t) 3 6 10 20

Note:

1. The working table dimensions and displacement are customizable.



Two-axial Series:

EM2 Series Single Vibration



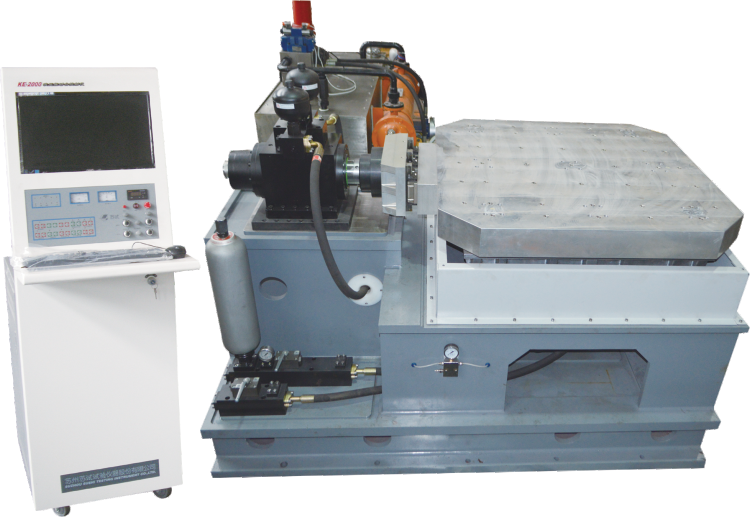

Two-axial Hydraulic Vibration System



Parameters & Model EM2-1 EM2-3 EM2-5 EM2-10
Max. Sine Force (kN) 10 30 50 100
Frequency Range (Hz) 0.1～120 0.1～120 0.1～100 0.1～80
Max. Payload (kg) 300 500 800 1000
Max. Acceleration (m/s²) 40 40 40 40
Max. Velocity (m/s) 0.5 0.5 0.5 0.5
Max. Displacement (mm) 100 100 100 100
Working Table Dimensions (mm ) 600×600 600×600 1000×1000 1200×1200
Dimensions (L×W×H) (mm) 2000×900×1350 2000×900×1350 2600×1300×1400 3300×1500×1700
Uncrated Weight (kg) 5000 5000 6500 8000
Consumed Power (kw) 15 30 45 75
Cooling Water Volume (t) 3 6 10 20

Note:

1. The working table dimensions and displacement are customizable.

2. If need multi axial simultaneous vibration system, please contact STI.



Tri-axial Series:

EM3 Series Single Vibration

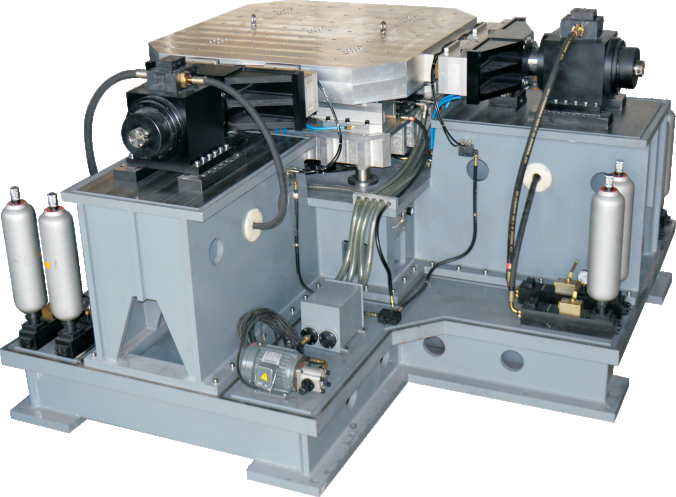

Three-axial Hydraulic Vibration System



Parameters & Model EM3-1 EM3-3 EM3-5 EM3-10
Max. Sine Force (kN) 10 30 50 100
Frequency Range (Hz) 0.1～120 0.1～120 0.1～100 0.1～80
Max. Payload (kg) 300 500 800 1000
Max. Acceleration (m/s²) 30 30 30 30
Max. Velocity (m/s) 0.5 0.5 0.5 0.5
Max. Displacement (mm) 100 100 100 100
Working Table Dimensions (mm ) 600×600 600×600 100×1000 1200×1200
Dimensions (L×W×H) (mm) 2000×2000×1350 2000×2000×1350 2600×2600×1400 3300×1500×1700
Uncrated Weight (kg) 6000 6000 8000 9500
Consumed Power (kw) 15 30 45 75
Cooling Water Volume (t) 3 6 10 20

Note:

1.The working table dimensions and displacement are customizable.

2. If need multi axial simultaneous vibration system, please contact STI.
